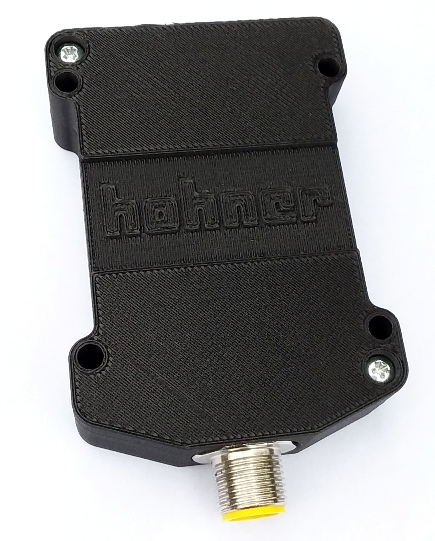

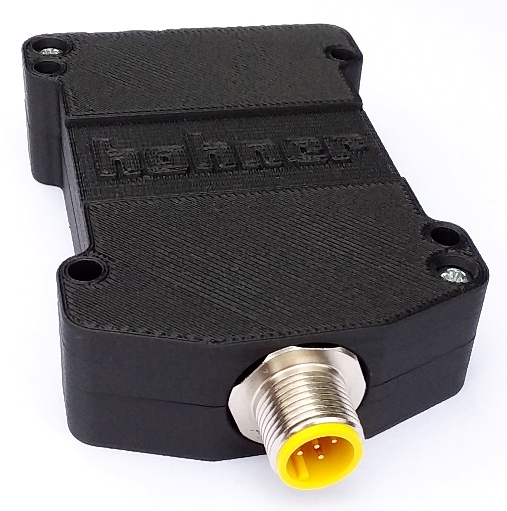

NAX-XXX Inclinometer and Accelerometer (Hydra)

(combination inclinometer + accelerometer available)

Also available in stainless steel







Click here for Explosion

Proof Version (Ex d IIC)
N   A   X - X   X   X   X
  |   |   |   |   |
Output   |   |   |   |
V = 0...5V   |   |   |   |
C = 4...20mA   |   |   |   |
    |   |   |   |
Type   |   |   |
N - Inclinometer   |   |   |
A = Accelerometer   |   |   |
D = Dual Inclin + Accel   |   |   |
    |   |   |
Axis   |   |
A = X axis   |   |
B = Y axis   |   |
C = X and Y axis   |   |
D = X, Y and Z axis   |   |
    |   |
Angle for Inclinometer   |
A = +/- 15 degrees   |
B = +/-30 degrees   |
C = +/- 45 degrees   |
D = +/- 60 degrees   |
E = +/- 90 degrees   |
    |
G value for Accelerometer
J = +/-2g
K = +/-4g
L = +/- 8g
M = +/-16g
Technical Data Connection Options
Operating temp: - 40 ...+   60 degrees C Single Output Dual Output
- 40 ...+ 140 degrees F 5pin M12 Turck 10pin M12 Turck
Vibration: 5g (500 Hz) +PS 24V 1 1 (inc)
Shock: 10g (6msec) -GND 2 2 (inc)
Power supply: Variable Signal X 3 (inc or acc) 3 (inc)
Weight: 0.4 Kg Signal Y 4 (inc or acc) 4 (inc)
Protection: IP 66/67 Signal Z 5 (inc or acc) 5 (inc)
Housing: Plastic or Stainless St. +PS 24V 6 (acc)
Humidity: Up to 98% permissible -GND 7 (acc)
Connection: M12 Turck minifast Signal X 8 (acc)
Signal Y 9 (acc)
Signal Z 10 (acc)

Outputs
4...20mA: + XXo = 4mA and -XXo = 20mA
0.5...4.5V: + XXo = 0.5V and -XXo = 4.5V

Inclinometer Details (MEMS) Accelerometer Details (MEMS)
Precision: 0.1 degrees Sensitivity: 200mV/g sensitivity
Setting time: 0.1 second Frequency Response: 0 to 7,500 Hz
Power Supply: 24V Resonant Frequency: 15,000 Hz
Output Current: 4...20mA Non Linearity: +/- 1%
Measuring Rate: 1 kHz Transverse Sensitivity: <=10%
Stability: +/-90 x 10-6/Co Setting time: <=80ms
Setting time: <=80ms Power Supply: 24V
Output Current: 2 to 20mA

Mounting Instructions

Hook up the inclinometer with the connections as described.  Make sure power supply meets specifications.  Attach unit to machine or device and use the arrows indicating inclination as reference as to which axis the measurements take place.

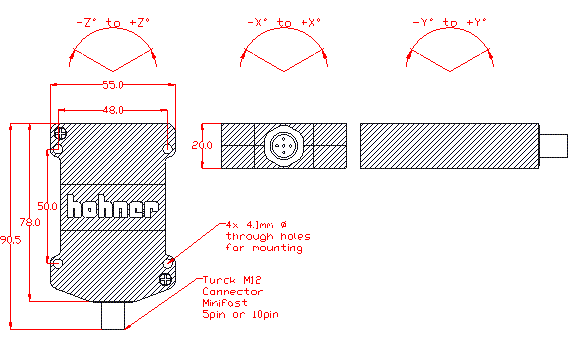

Dimensions
