TTS-00X 'Angler' Threaded Temperature Sensor with Transmitter |
|
|
Part Number: TTS - 00X
Stainless Steel Housing Thread: 1/4" - 18 NPT
DFL-001 = -40...116C (240F) |
| Technical Data | Connection Options | ||
| Operating temp: | - 40...+ 116 degrees C | 6 pin connector (62IN-12E-10-6P) | |
| - 40 ...+ 240 degrees F | Pin A | +Excitation | |
| Thermo Drift Zero: | +/-0.01% FSO per C | Pin B | +Signal (4...20mA) |
| Thermo Drift Sense: | +0.025% FSO per C | Pin F | Case |
| Ingress Protection: | IP68 | ||
| Weight: | 0.18 lbs (76g) | Install Torque: | 18-25Nm |
| Material Housing: | 17-4PH Stainless Steel | Install Thread: | 1/4" - 18 NPT |
| Material Wetted Part: | Stainless Steel | ||
| Vibration: | 20g, from 10 to 200 Hz | Sensing Element | |
| Shock: | 500g at 1ms | UST Pt100 | |
| Pressure Range: | 2k psi to 10k psi | ||
| Over Pressure: | 1.5x to 1.8x range | Precision and Scale | |
| Max Static Pressure: | 5,000 psi | Accuracy: | +/-(0.15+0.002t)C |
| Electronics Accuracy: | +/-0.5% of measuring span | ||
| Electrical Data | Response Time: | <=35s to reach 90% full scale | |
| Excitation: | 9 to 30 VDC | ||
| Circuit Protection: | Reverse Polarity | ||
| Measuring Current: | 0.5mA | ||
| Output: | 2 wire 4...20mA loop | ||
| Electrical Connection: | 62IN-12E-10-6P | ||
| Insulation Resistance: | >= 100M ohm to GND | ||

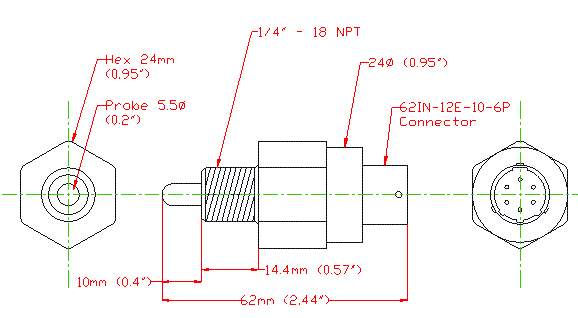

Dimensions:
