JBP-00X 'Turtle' - Plastic Junction Box

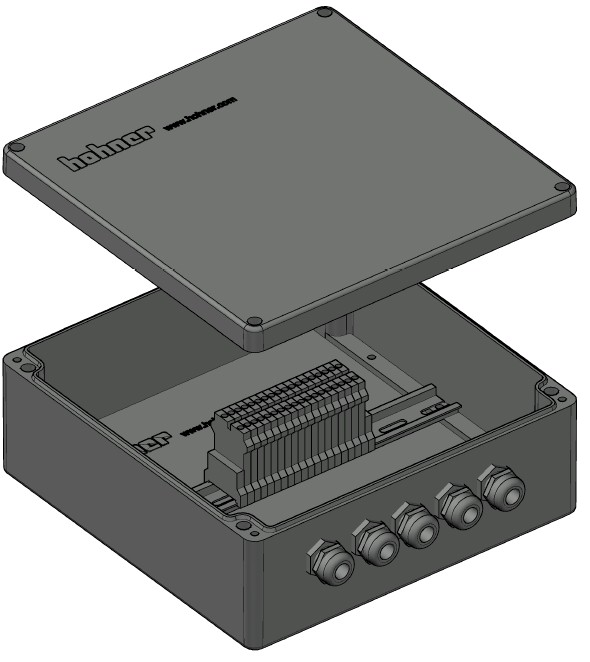

Picture here is representative only







Part Number: JBP - XXXXXX-XX

Format JBP - LLWWDD-SPECIAL



GRP or Polyamide Enclosure

Any number of cable glands and types

Any number of terminal blocks and types

Solid Injection Moulded Parts

Standard 5 year warranty



IP66 and IP68 versions



Picture is for illustration, we make various models to suit with components inside or blank, and with cable glands or blank.
Technical Data Connection Options
Operating Temp: -20...+70degrees C Any number and type of cable glands (appropriately rated)
-4 ...+160 degrees F scan be fitted at Hohner, or we can provide blank threaded
Material: GRP (Glass Reinforced) holes.
Or Polyamide For IP68, glands have to be torqued in properly
IP Rating: IP66 and/or IP68
Impact Resistance: > than 10Nm Sizes
Certification: ATEX, IECEx pending See table below, custom sizes also available
Cable Glands: As per customer
Weight: Depends on size Advantages
Screws to hold lid 4x M6 for IP66 Modular design and in house design and manufacturing
8x M6 for IP68 allows for various custom options
Component Mounting: Internal 35mm DIN Rail
Earthing screw As standard Accessories
Hohner can mount the DIN rail and any terminal blocks,
Certification PLC's or any other type of equipment required by customer.
IP68 Hohner can also fit any cable glands or connectors, push
  buttons, LED lights and anything else.
  allowing for delivery of a complete ready to use system


Dimensions:

Cross Section Dimensions below are representative only, and can change depending on box sizes and internal

content requirements.  An o-ring ensures IP68 protection and M6 screws ensure enough pressure for sealing.

Inside are shoulders for securing DIN rails with M5 screws as necessary





Table of available sizes and part numbers:  Dimensions shown here are EXTERNAL

Part Number EXTERNAL Size L W Height
JBP-101010 10cm x 10cm x 10cm (one DIN rail locations)
JBP-151010 15cm x 10cm x 10cm (one DIN rail locations)
JBP-151510 15cm x 10cm x 10cm (two DIN rail locations)
JBP-201510 20cm x 10cm x 10cm (two DIN rail locations)
JBP-202010 20cm x 10cm x 10cm (two DIN rail locations)
JBP-252010 25cm x 10cm x 10cm (two DIN rail locations)
JBP-252510 25cm x 10cm x 10cm (two DIN rail locations)
JBP-302515 30cm x 10cm x 10cm (two DIN rail locations)
JBP-303015 30cm x 10cm x 10cm (two DIN rail locations)
JBP-303020 30cm x 10cm x 10cm (two DIN rail locations)
JBP-353015 35cm x 10cm x 10cm (two DIN rail locations)
JBP-353020 35cm x 10cm x 10cm (two DIN rail locations)
JBP-353520 35cm x 10cm x 10cm (two DIN rail locations)
JBP-402010 40cm x 20cm x 10cm (three DIN rail locations)
JBP-402015 40cm x 20cm x 15cm (three DIN rail locations)
JBP-402510 40cm x 25cm x 10cm (three DIN rail locations)
JBP-403010 40cm x 30cm x 10cm (three DIN rail locations)
JBP-403020 40cm x 30cm x 20cm (three DIN rail locations)
JBP-404020 40cm x 40cm x 20cm (three DIN rail locations)
JBP-404030 40cm x 40cm x 30cm (three DIN rail locations)
JBP-452010 45cm x 20cm x 10cm (four DIN rail locations)
JBP-452015 45cm x 20cm x 15cm (four DIN rail locations)
JBP-452510 45cm x 25cm x 10cm (four DIN rail locations)
JBP-453010 45cm x 30cm x 10cm (four DIN rail locations)
JBP-453015 45cm x 30cm x 15cm (four DIN rail locations)
JBP-453020 45cm x 30cm x 20cm (four DIN rail locations)
JBP-454010 45cm x 40cm x 10cm (four DIN rail locations)
JBP-454510 45cm x 45cm x 10cm (four DIN rail locations)
JBP-454520 45cm x 45cm x 20cm (four DIN rail locations)
