DLS-001 'Dragon' - Stainless Steel Mud Flow Return Sensor / Transmitter |
|
Part Number: DLS - 001
4...20 mA 2 wire current loop output
Zone 0 Ex ia IIC Certified
Precision: 8 absolute bits / 256 steps per the 90 degrees within 16mA equivalent to: 1 degree has 0.177mA 0.177mA has 2.84 steps
"obviously far superior" according to customers
|
| Technical Data | Connection Options | ||
| Operating temp: | - 20 ...+ 60 degrees C | Cable (available as wireless or with connector as well) | |
| - 4 ...+ 140 degrees F | + Loop | Red (+ Current) | |
| Certification: | ATEX, IECEx, CSA | - Loop | Black (- Current) |
| Weight: | 26 lbs (12 kg) | ||
| Protection: | IP 66 / X7 M | Output Limits | |
| Material Encoder: | Stainless Steel |
When the paddle is down (vertical), the output is 4mA |
|
| Material Chassis: | Stainless Steel |
When the paddle is up (horizontal), the output is 20mA |
|
| Material Paddles: | Stainless Steel |
 |
|
| Material Spring: | Stainless Steel | ||
| Pressure rating: | 5 bar | ||
| Paddle's for Following Pipe Sizes | |||
| Small Paddle | 7.75" to 9.75" Ø | ||
| 200 to 250mm Ø | |||
| Medium Paddle | 10.75" to 14" Ø | ||
| 275 to 355 Ø | |||
| Large Paddle | 15.75" to 17.75" Ø | ||
| 400 to 450mm Ø | |||
|
Paddles can be Tungsten Coated as an Option |
|||
| Different Shape and Size Paddles available | |||
| Certification | Special Options | ||
| IP 66 and Ex ia IIC T4 | -Different connectors and or cable glands | ||
| ATEX [Certificate] | -Different mounting hole arrangements on base plates | ||
|
IECEx [Certificate] |
|||
| CSA [Certificate] | |||
|
GOST (CU) [Certificate] |
|||
| Best suited to work with the following MTL isolator: MTL5541 | |||
Installation and User Manual
Please click here for PDF installation and user manual

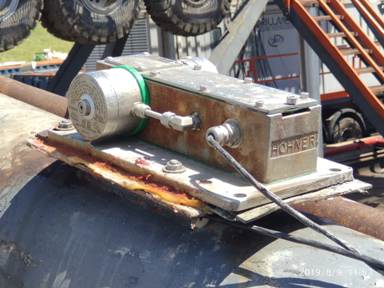

Details for Mounting Saddle/Base/Flange to be welded onto pipe
(does not come with saddle as standard, has to be ordered separately)
Please click here for full data sheet of our mounting saddle - DLS-SBW
Dimensions
